Power Monitoring System
Rage of the power control system
HARDWARE
Integrated control system for the power & the lighting control system
Direct Digital Controller for on-site
DIPM, DIMC, Transducer type (ACV, ACA, DCA, DCV)
SOFTWARE
Monitoring of relays and measuring instruments
Monitoring and controlling of breakers, power status and alarm
Power outage or restoration control, power factor monitoring, generator monitoring
Technical assistance
Test for the system adjustment and the individual commissioning
Total commissioning service
Providing a training for operator with the system manual
Main functions of power control system
| Control Monitoring, measuring |
- Control : VCB, ACB input/cutting off - Measuring : voltage, current, power, power factor, harmonic wave, frequency, DC voltage and DC current - Monitoring : VCB, ACB, ATS status / OCR, OCGR, UVR alarm / ELD alarm / TR temperature rise alarm |
| Indication and record | Efficient electrical substation management and energy saving with passing the collected DATA along to the software which manage the power |
| Power monitoring and alarm |
Monitoring the target energy consumption, present energy consumption, estimated energy consumption, demand control warning and power outage alarming |
| Power outage and restoration |
Notice the issue to operator in power outage and monitor simultaneously the operation status of interlock devices as well as generator |
| Load control of generator | At the power outage, monitoring the generator power to not be exceed generator capacity after generator voltage checking and then make a decision to operate or stop in accordance with order of priority |
| Power factor control | The functions of Inputting and blocking the condenser and consistent high power factor with monitoring the power factor of electric power system to maintain the optimum power factor |
| Maximum demand power control | The function of Power Consumption Control with periodical power consumption, analysis and prediction and controlling the registered load not to be exceed the proposed demand |

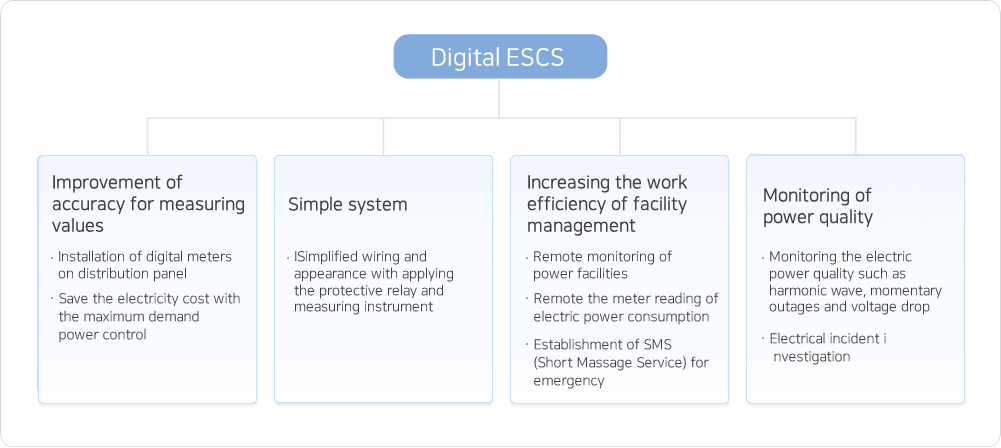

Effect of the power control system
| Power control |
- Stable management of eco-friendly energy - Reduction of electric charge by high power factor preservation and power factor control - Maximum demand power control and trend analysis - Cost saving for the building management and energy consumption - Establishment of scheme for the power supply and integrated management |

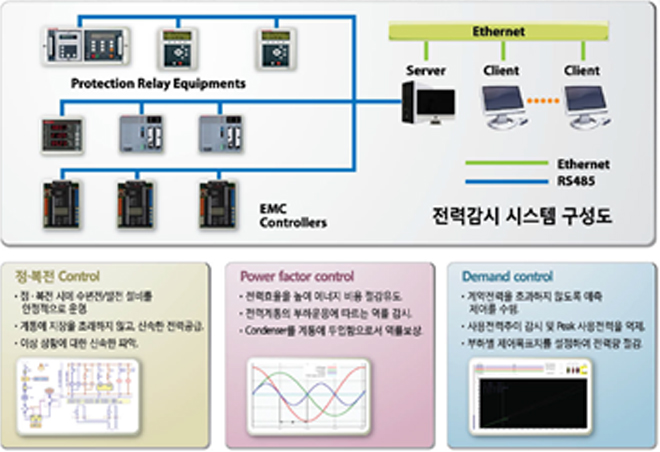

Diagram of the power control system
